320 x 230 mm
Open Load
Aqua Plasma™
none
Compact system for R&D

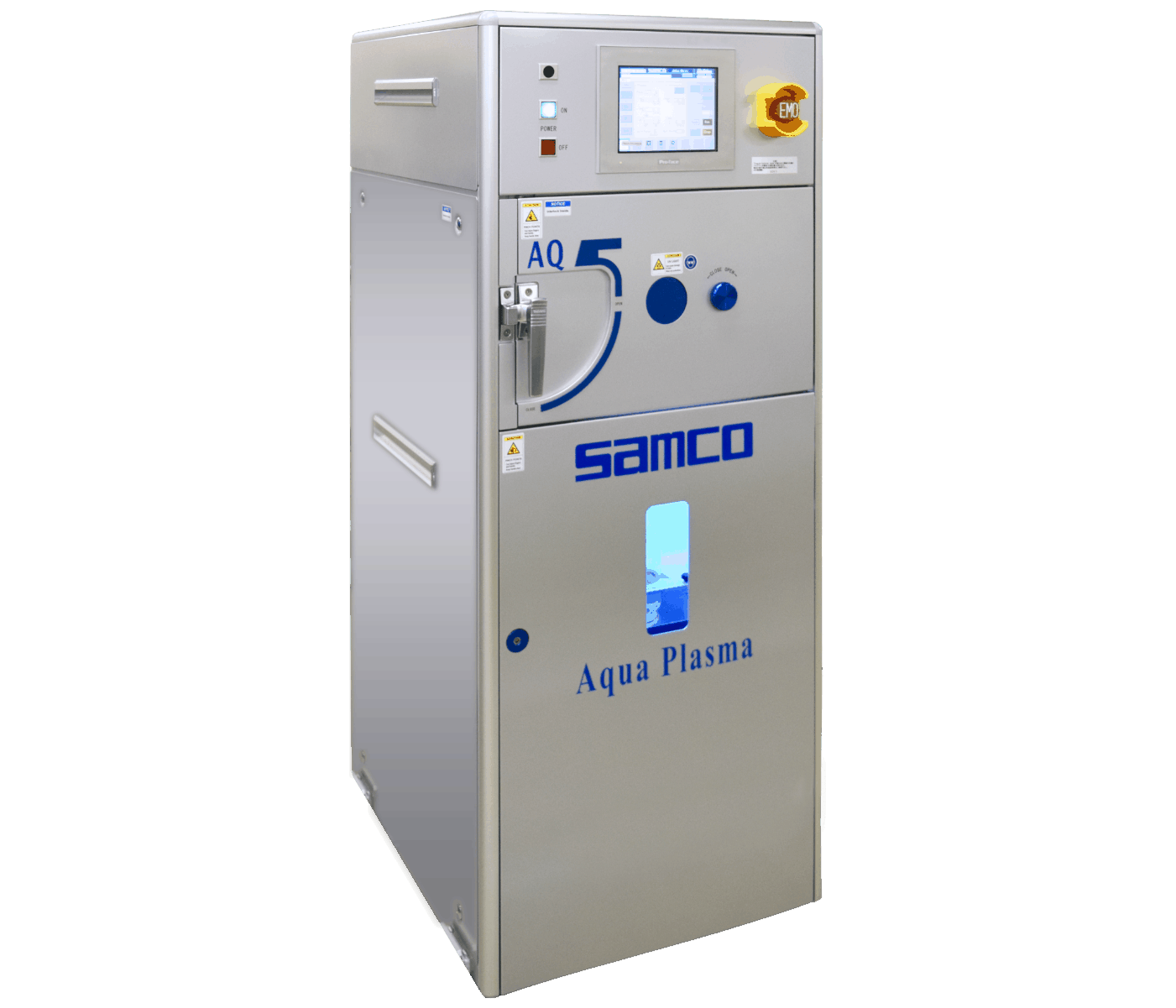

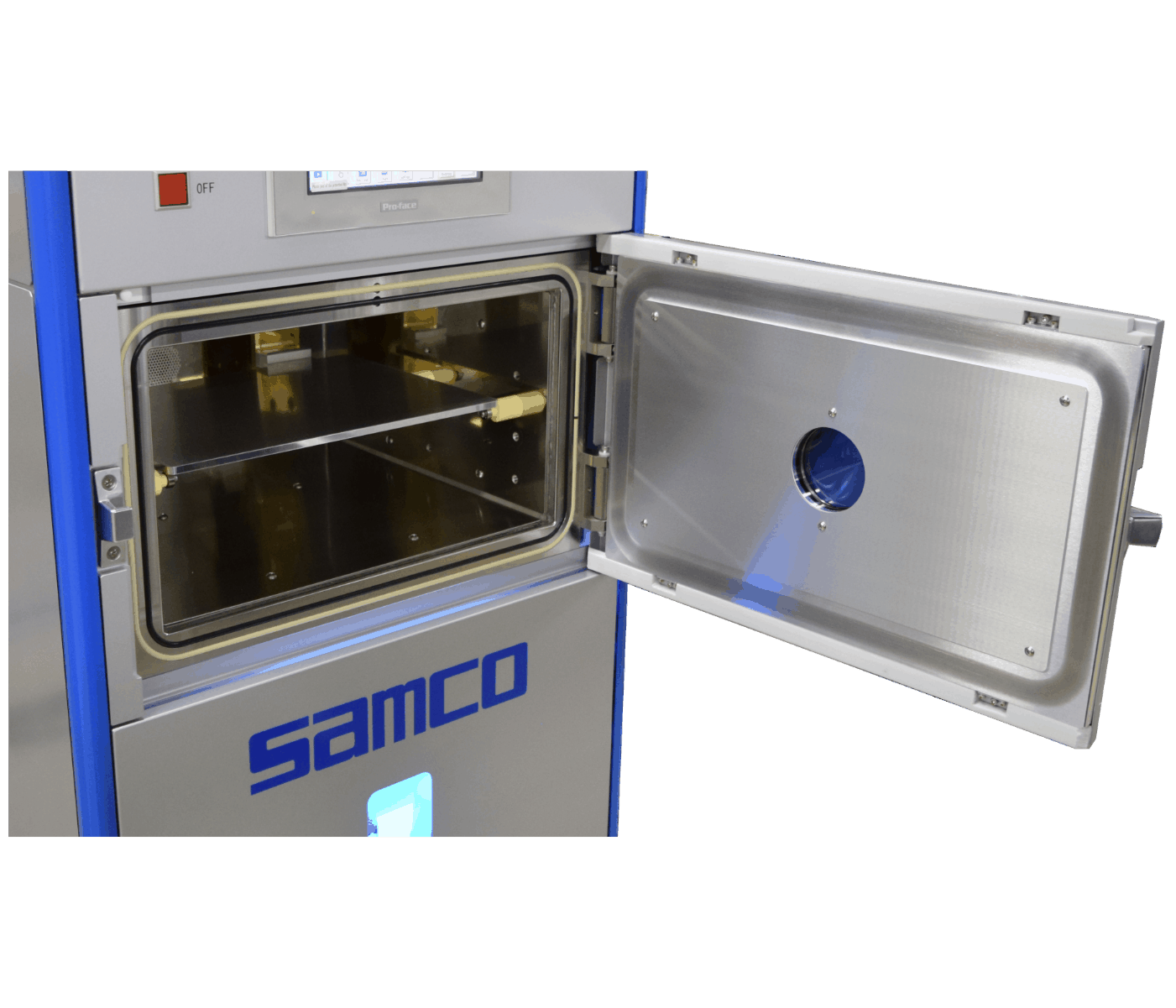

The AQ-500 is a compact Aqua Plasma® cleaning system, ideal for R&D applications. Using H₂O as the process gas, it enables safe, eco-friendly surface treatments, including reduction of metal oxide films, cleaning of organic stains, resin bonding, and superhydrophilization. Its optimized design ensures reliable performance for samples up to 320 x 230 mm.
Key Features & Benefits
- Safe reduction and cleaning of metal oxide films using Aqua Plasma® technology.
- Built-in automatic control system for precise water vapor generation and supply.
- Compact design optimized for R&D spaces (540 mm (W) x 650 mm (D)).
Applications
- Reduction, cleaning, and modification of silver and copper electrodes.
- Room-temperature bonding of dissimilar materials.
- Surface modification of resins, including superhydrophilization.
