406 x 413 mm
Open Load
Aqua Plasma™
none
Scalable System for Batch Processing

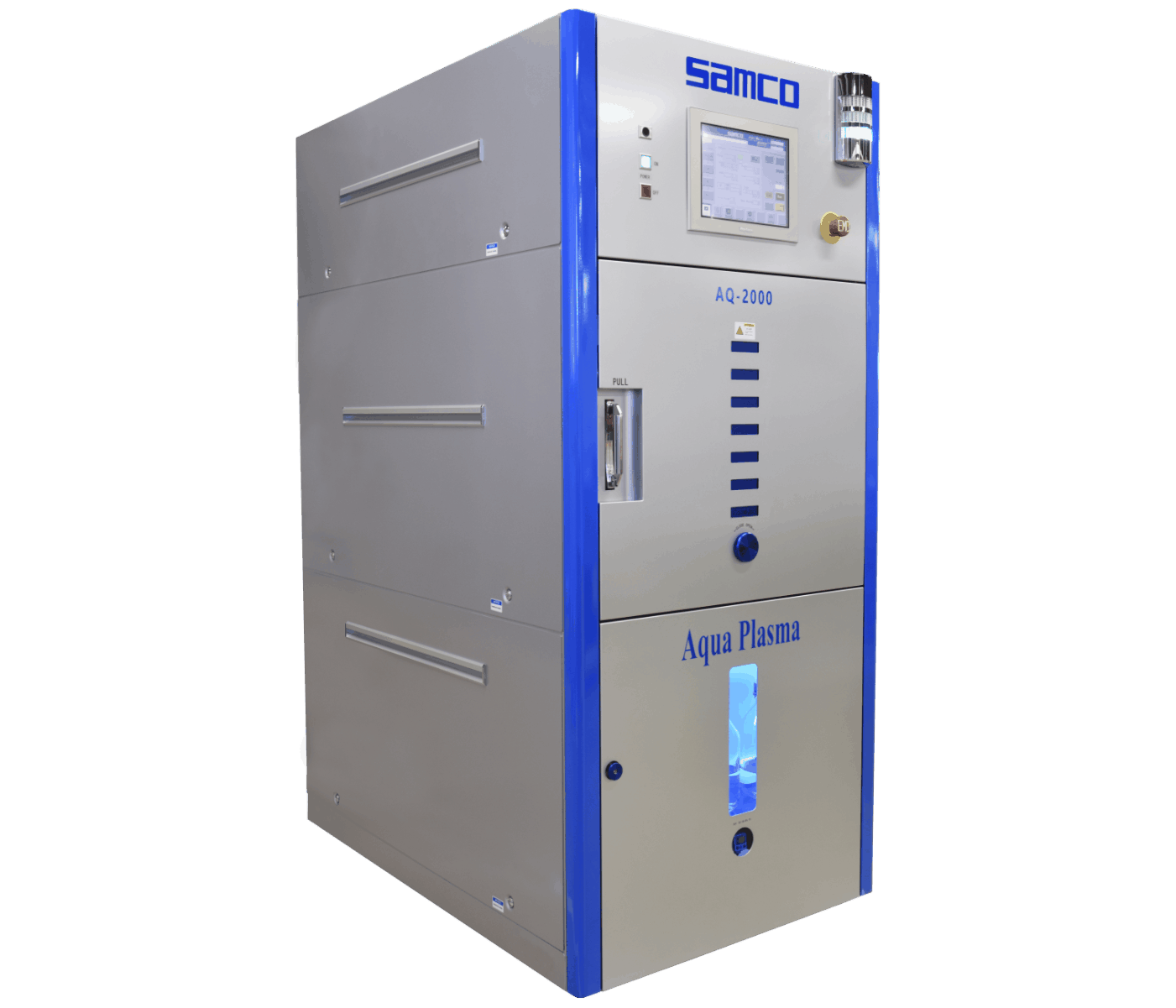

The AQ-2000 is a scalable Aqua Plasma® cleaning system designed for production-scale operations. With H₂O as the process gas, it offers safe, eco-friendly treatments like reducing metal oxide films, cleaning organic stains, resin bonding, and superhydrophilization. Equipped with multiple shelves, it supports batch processing for samples up to 406 x 413 mm.
Key Features & Benefits
- Safe reduction and cleaning of metal oxide films with Aqua Plasma® technology.
- Built-in automatic control system for water vapor generation and supply.
- Space-efficient design suitable for production environments (762 mm (W) x 1135 mm (D)).
Applications
- Reduction, cleaning, and modification of silver and copper electrodes.
- Room-temperature bonding of dissimilar materials.
- Surface modification of resins, including superhydrophilization.
Options
Quartz cover (to prevent spattering of powered electrodes)
