⌀8″
Cassette Loading
none
none
Space-saving production system

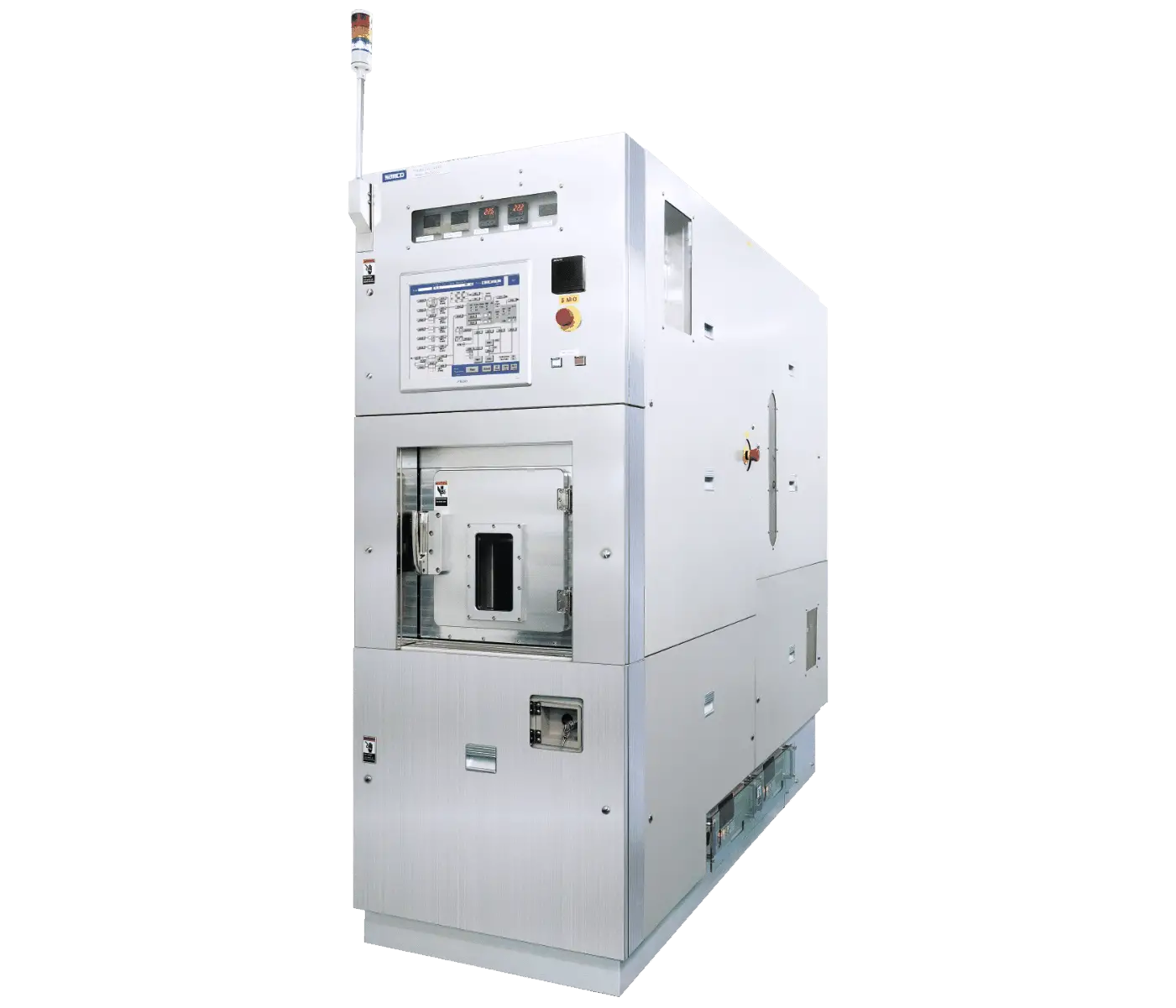

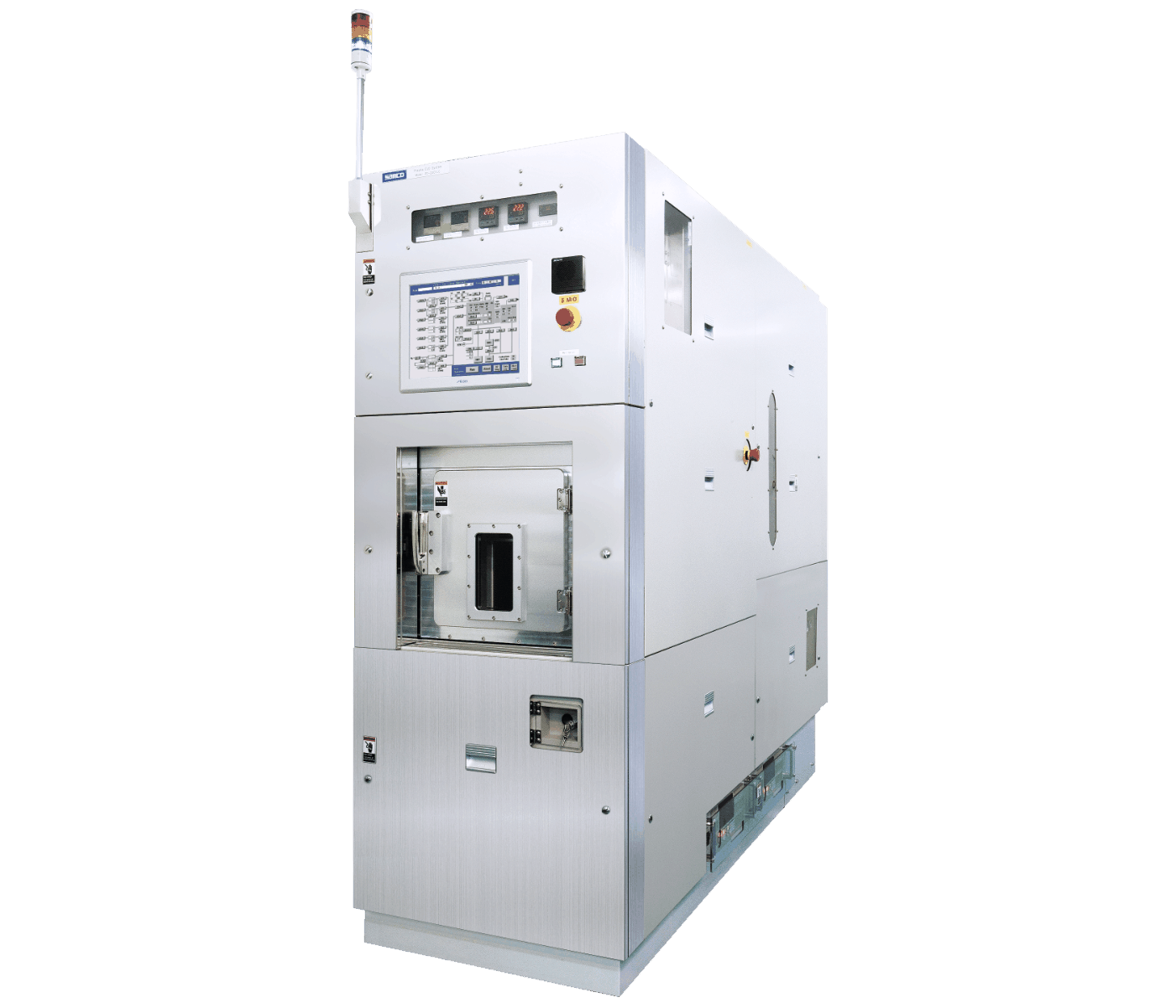

The PD-2201LC is a cassette loading plasma-enhanced chemical vapor deposition (PECVD) system capable of depositing silicon-based films (silicon oxide, silicon nitride, silicon oxynitride and amorphous silicon).
This system offers all of the standard features for PECVD in a space-saving footprint. Films with superior thickness uniformity and stress control can be deposited over a 220 mm diameter area with excellent stability and repeatability. User-friendly touch screen interface for parameter control and recipe storage. This system is ideal for depositing thin films for mass production with excellent repeatability.
Key Features & Benefits
- Processing up to ø220 mm (ø3″ x 5, ø4″ x 3, ø8″ x 1)

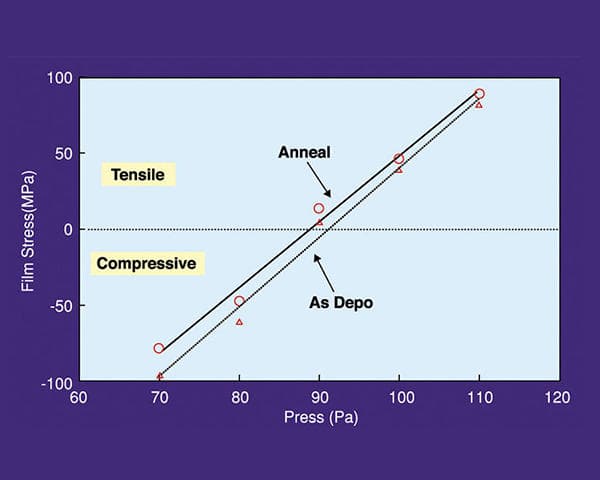

- Superior uniformity and stress control

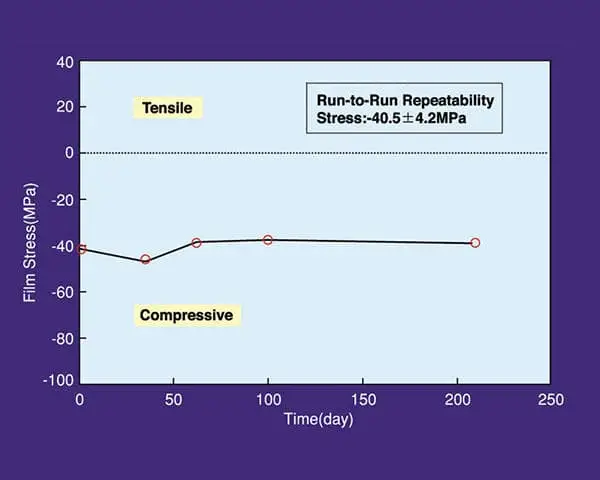

- Excellent process stability and repeatability
- Robust system with minimal running / maintenance cost
- User-friendly touch screen interface for parameter control and recipe storage.
- Sleek, space-saving design, requiring minimal cleanroom space
- Dual-frequency (13.56 MHz + 400 kHz) PECVD for superior process control
